  • Help on Nix Manager - package installs

Hi All,

I am running the nix package manager on Ubuntu and trying to build a complete flake.nix.

The default
inputs.extrapkg.url = "git+https://git.m-labs.hk/M-Labs/artiq-extrapkg.git"; comes with a broken form of spyder where it cannot find the spyder-kernels and initialize consoles.

![
](https://)

While I was here I thought it might make since to try and install miniconf in the flakes as well since I would like to use the stabilizer cards.

My attempt to do this has not been very successful. The miniconf package is not found and the spyder package is not fixed. Any help would be appreciated.

My flake.nix file looks like.

`
{
inputs.extrapkg.url = "git+https://git.m-labs.hk/M-Labs/artiq-extrapkg.git";

inputs.miniconf = { url = github:quartiq/miniconf; flake = true; };
inputs.spyder_ke = { url = github:spyder-ide/spyder-kernels; flake = false; };


outputs = { self, extrapkg,spyder_ke, miniconf}:
let
pkgs = extrapkg.pkgs;
artiq = extrapkg.packages.x86_64-linux;

in {


	miniconf = miniconf.defaultPackage;
	spyder_ke = spyder_ke.defaultPackage;

  defaultPackage.x86_64-linux = pkgs.buildEnv {
    name = "artiq-env";
    paths = [
      # ========================================
      # EDIT BELOW
      # ========================================
      (pkgs.python3.withPackages(ps: [
        # List desired Python packages here.
        artiq.artiq
        #ps.paramiko  # needed if and only if flashing boards remotely (artiq_flash -H)
        artiq.flake8-artiq
        artiq.dax
        artiq.dax-applets

        # The NixOS package collection contains many other packages that you may find
        # interesting. Here are some examples:
        ps.pandas
        ps.numpy
        ps.scipy
        #ps.numba
        ps.matplotlib
        ps.jupyterlab
        # or if you need Qt (will recompile):
        #(ps.matplotlib.override { enableQt = true; })
        #ps.bokeh
        #ps.cirq
        #ps.qiskit
      ]))

      #artiq.korad_ka3005p
      #artiq.novatech409b
      # List desired non-Python packages here
      artiq.openocd-bscanspi  # needed if and only if flashing boards
      # Other potentially interesting non-Python packages from the NixOS package collection:
      #pkgs.gtkwave
      pkgs.spyder

      #pkgs.R
      #pkgs.julia
      # ========================================
      # EDIT ABOVE
      # ========================================
    ];
  };
};

nixConfig = { # work around https://github.com/NixOS/nix/issues/6771
extra-trusted-public-keys = "nixbld.m-labs.hk-1:5aSRVA5b320xbNvu30tqxVPXpld73bhtOeH6uAjRyHc=";
extra-substituters = "https://nixbld.m-labs.hk";
};
}

`

    Hi pyquest ,

    You should use the pythonPackage version of spyder by prefixing it with ps. That version already includes spyder-kernels in its PATH. Additionally, you can modify the flake as follows to use the miniconf (see diff). This time you should activate the envinronment with nix develop instead of nix shell.

     {
       inputs.extrapkg.url = "git+https://git.m-labs.hk/M-Labs/artiq-extrapkg.git";
    -  outputs = { self, extrapkg }:
    +  inputs.miniconf.url = "github:quartiq/miniconf";
    +  outputs = { self, extrapkg, miniconf }:
         let
           pkgs = extrapkg.pkgs;
           artiq = extrapkg.packages.x86_64-linux;
         in {
           # This section defines the new environment
    -      packages.x86_64-linux.default = pkgs.buildEnv {
    +      devShells.x86_64-linux.default = pkgs.mkShell {
             name = "artiq-env";
    -        paths = [
    +        packages = [
               # ========================================
               # ADD PACKAGES BELOW
               # ========================================
    @@ -22,6 +23,7 @@

                 # The NixOS package collection contains many other packages that you may find
                 # interesting. Here are some examples:
    +            ps.spyder
                 #ps.pandas
                 #ps.numba
                 #ps.matplotlib
    @@ -35,6 +37,7 @@
                 # ARTIQ and incorporated with an ARTIQ install anyway.
               ]))
               # List desired non-Python packages here
    +          miniconf.packages.x86_64-linux.miniconf-mqtt-py
               # Additional NDSPs can be included:
               #artiq.korad_ka3005p
               #artiq.novatech409b

    Hi,

    Thanks for the help and headsups. To be clear on the expected behavior. After running nix develop I should have access to spyder and miniconf? I appear to only have access after entering a shell.

    `
    grpartiq@3085:~/ARTIQ/Artiq_Workplace$ nix develop

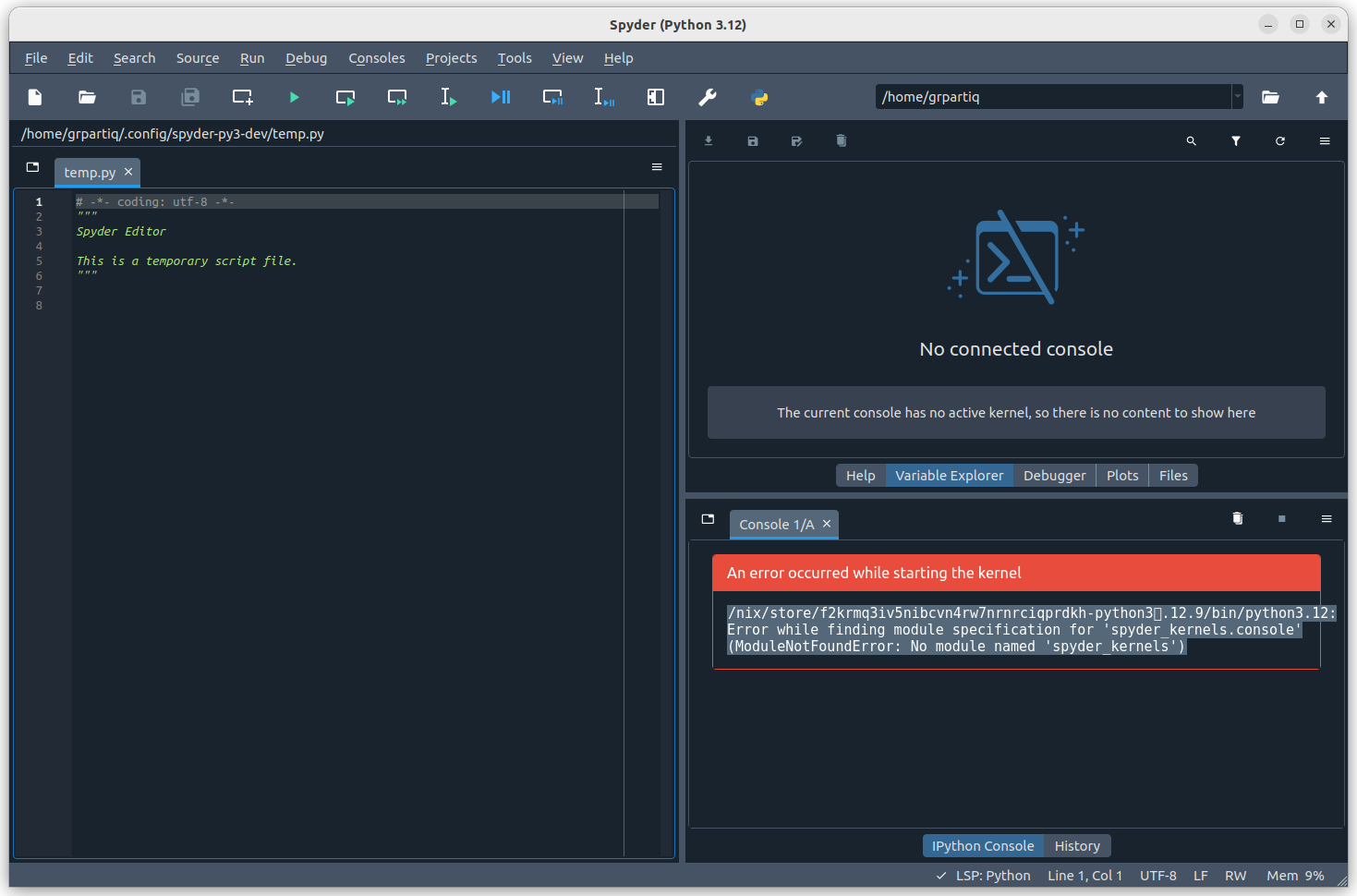

    I have no name!@3085:~/ARTIQ/Artiq_Workplace$ spyder
    bash: spyder: command not found
    I have no name!@3085:~/ARTIQ/Artiq_Workplace$ nix shell
    bash: shopt: progcomp: invalid shell option name
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: shopt: hostcomplete: invalid shell option name
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    bash: complete: command not found
    [][]I have no name!@3085[]:[]~/ARTIQ/Artiq_Workplace[]$ spyder
    Warning: Ignoring XDG_SESSION_TYPE=wayland on Gnome. Use QT_QPA_PLATFORM=wayland to run on Wayland anyway.
    Gtk-Message: 18:08:27.297: Failed to load module "canberra-gtk-module"
    Gtk-Message: 18:08:27.297: Failed to load module "canberra-gtk-module"
    QXcbIntegration: Cannot create platform OpenGL context, neither GLX nor EGL are enabled

    `

      pyquest Yes, nix develop should give you access to both spyder and miniconf.

      Did you change these lines as follows?

      -      packages.x86_64-linux.default = pkgs.buildEnv {
      +      devShells.x86_64-linux.default = pkgs.mkShell {
               name = "artiq-env";
      -        paths = [
      +        packages = [

      Could you share the output of nix flake show?

        fsagbuya

        Hi fsagbuya,

        Thank you for the help. I missed that I needed to change path to packages. As a general question, as I am new to NIX.

        1.) What is the practical difference between mkShell and mkEnv

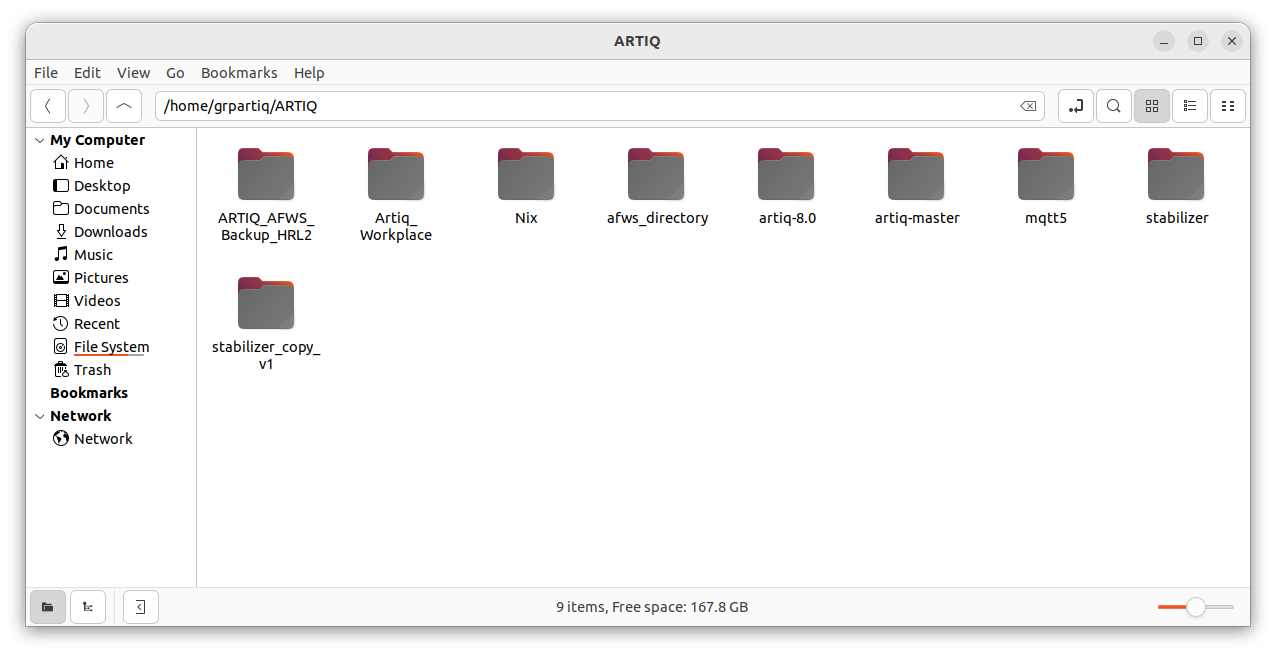

        2.) Where do most folks create their nix flakes? I find myself jumping around alot and its making me wonder if this is the workflow intended for artiq. So for instance I'd do something like

        `
        ~ cd/ARTIQ/Nix_Working_Dir Nix Develop --------- startup the artiq environment/shell
        gnome-terminal --tab --------- add new tab (2) while staying in the shell
        ~ cd/ARTIQ/artiq-master ---------go to new tab to dir for artiq master
        gnome-terminal --tab ---------add new tab (3) while staying in the shell
        gnome-terminal --tab ---------add new tab (4) while staying in the shell
        artiq_master ---------startup artiq master in tab 2
        artiq_ctlmgr --------- startup artiq_ctlmgr in tab 3
        artiq_dashboard ---------startup artiq_dashboard in tab 4

        gnome-terminal --tab --------- add new tab (5) while staying in the shell
        ~ cd/ARTIQ/stabilizer --------- go do stabilizer stuff

        `

          1.
          buildEnv creates a directory with symlinks to the packages you include in the paths attribute. When you use nix shell with it, you're basically entering that directory with everything set up.

          mkShell creates a shell script that sets up the environment, which runs when you use nix develop.

          You won’t notice much difference between nix shell and nix develop while using them. One feature of buildEnv is that you can install it more permanently with nix profile install from the flake root.

          2.
          Preferred way is to create Nix flakes in the root directory where you want to run your ARTIQ environment. You can also create a flake per experiment if you want different packages available for each one.

          As for the workflow, just remember to always run nix develop or nix shell on your ARTIQ flake before executing any ARTIQ commands.

            fsagbuya

            2.) I am doing that but presumably its not recommended to do that in artiq-master but we still run artiq master and the repository etc is still in the artiq-master install directory? If artiq-master is run from a terminal that is not in the nix develop/shell how is it exposed to the packages?

            For example:

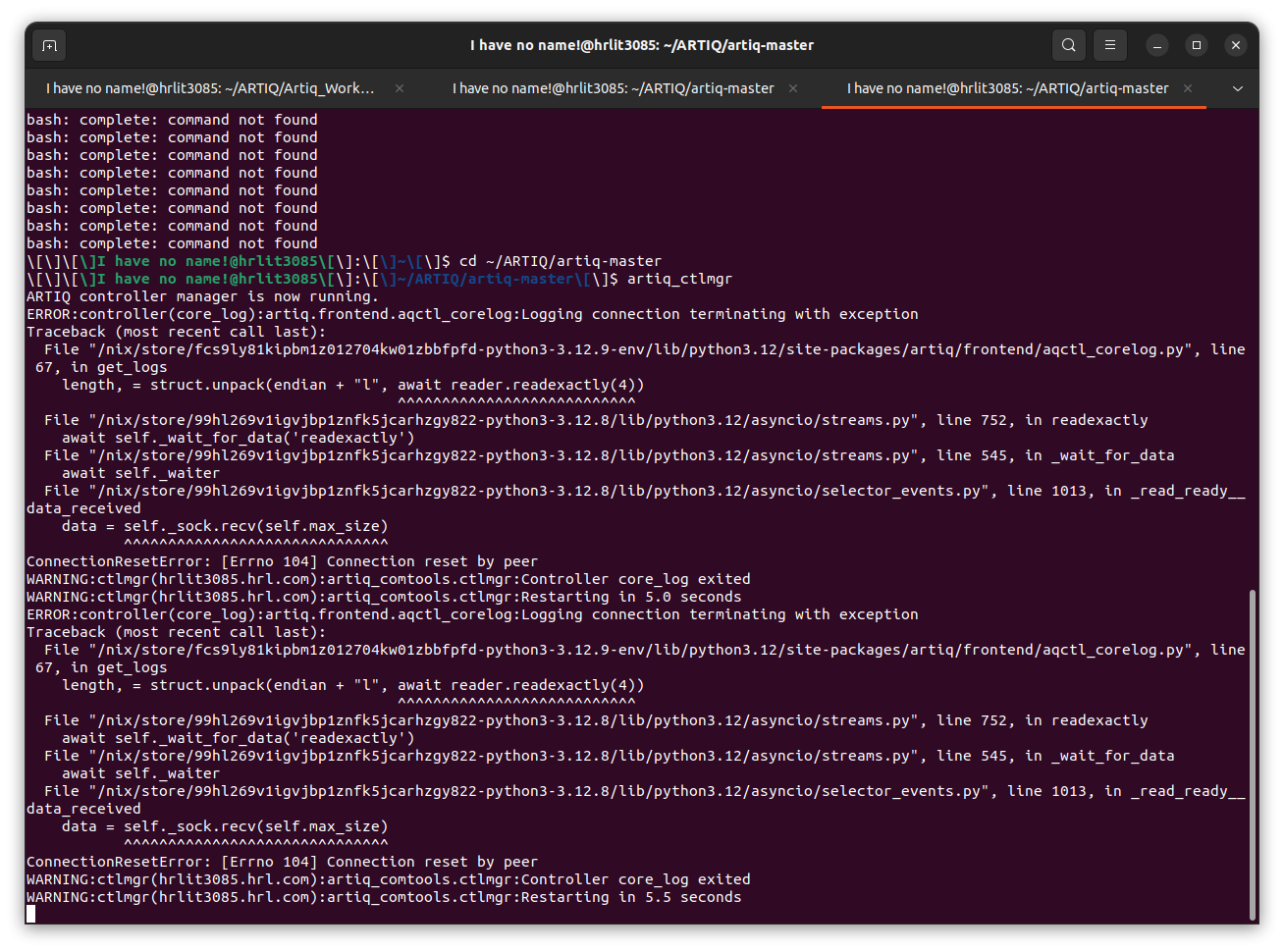

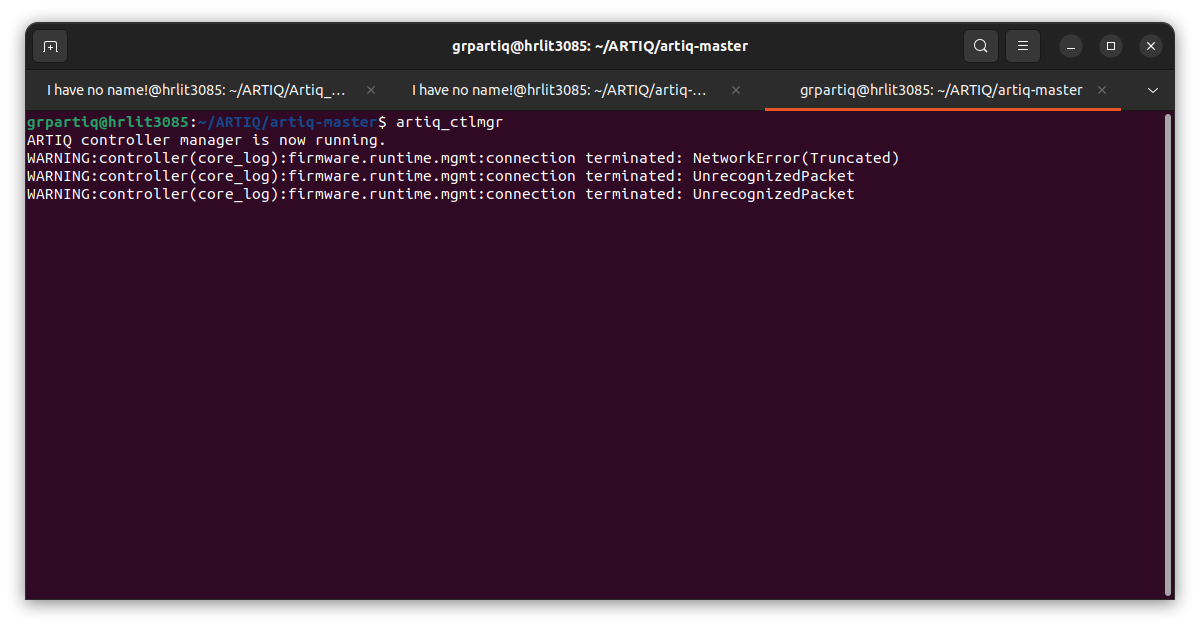

            running artiq_ctlmgr in the ubuntu terminal

            vs running artiq_ctlmgr in the nix-develop shell/terminal

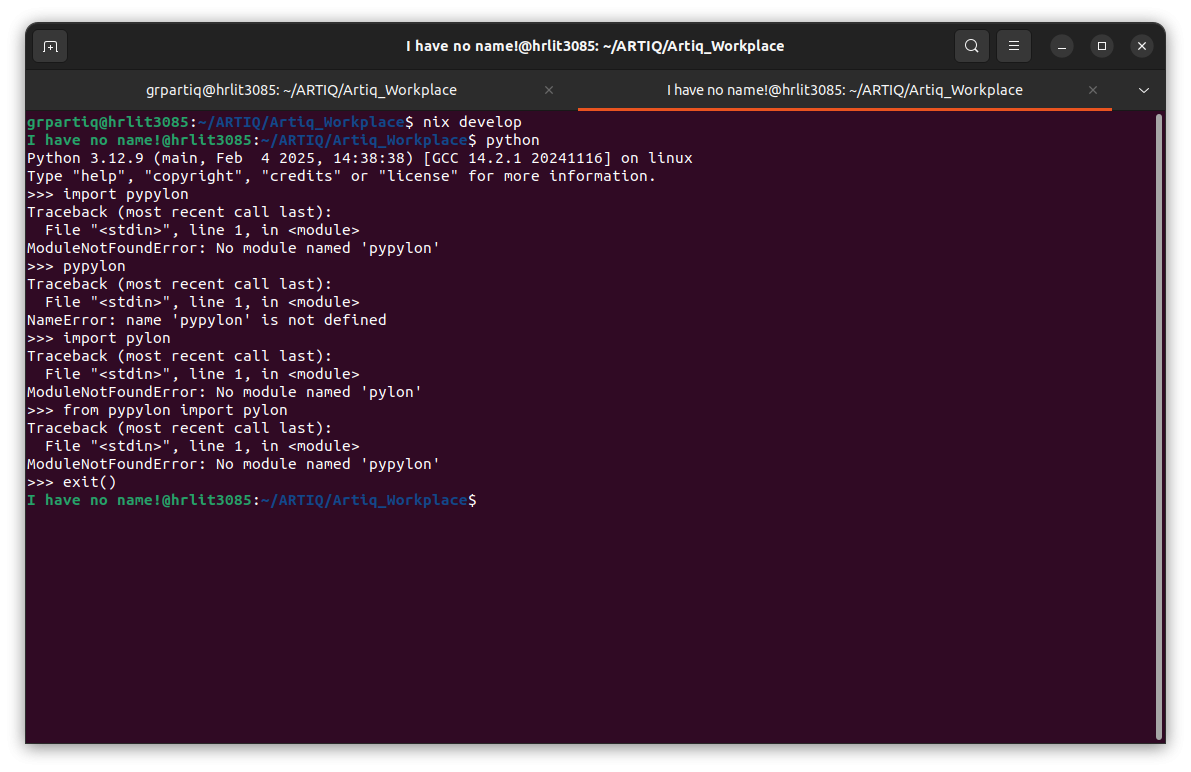

            3.) With respect to the installs. I am still a bit lost. While you helped me get it working (thank you). I am not sure that my understanding has increased. Here is another attempt (pypylon for basler cameras) at installing a github repository that is not in nix pkgs.

            `

            {
            inputs.extrapkg.url = "git+https://git.m-labs.hk/M-Labs/artiq-extrapkg.git";
            inputs.miniconf.url = "github:quartiq/miniconf";
            inputs.pypylon = {url = github.com/basler/pypylon ;flake = false; };
            outputs = { self, extrapkg, miniconf,pypylon }:

            let
              pkgs = extrapkg.pkgs;
              artiq = extrapkg.packages.x86_64-linux;
              pylon = pkgs.python3Packages.buildPythonPackage rec {
            	name = "pypylon";
            	src = pypylon.url;
            	format = "pyproject";
            	nativeBuildInputs = [ pkgs.python3Packages.setuptools pkgs.python3Packages.swig pkgs.python3Packages.wheel pkgs.python3Packages.lief pkgs.python3Packages.darwin];
            	};

            in {

              devShells.x86_64-linux.default = pkgs.mkShell {
                name = "artiq-env";
                packages = [
                  # ========================================
                  # EDIT BELOW
                  # ========================================
                  (pkgs.python3.withPackages(ps: [
                    # List desired Python packages here.
                    artiq.artiq
                    #ps.paramiko  # needed if and only if flashing boards remotely (artiq_flash -H)
                    artiq.flake8-artiq
                    artiq.dax
                    artiq.dax-applets

                    # The NixOS package collection contains many other packages that you may find
                    # interesting. Here are some examples:
                    ps.pandas
                    ps.numpy
                    ps.scipy
                    ps.spyder
                    pypylon

                    #ps.numba
                    ps.matplotlib
                    ps.jupyterlab
                    # or if you need Qt (will recompile):
                    #(ps.matplotlib.override { enableQt = true; })
                    ps.bokeh
                    ps.cirq
                    #ps.qiskit
                  ]))

                  miniconf.packages.x86_64-linux.miniconf-mqtt-py



                  #artiq.korad_ka3005p
                  #artiq.novatech409b
                  # List desired non-Python packages here
                  artiq.openocd-bscanspi  # needed if and only if flashing boards
                  # Other potentially interesting non-Python packages from the NixOS package collection:
                  #pkgs.gtkwave
                  #pkgs.spyder

                  #pkgs.R
                  #pkgs.julia
                  # ========================================
                  # EDIT ABOVE
                  # ========================================
                ];
              };
            };
             nixConfig = {  # work around https://github.com/NixOS/nix/issues/6771
            extra-trusted-public-keys = "nixbld.m-labs.hk-1:5aSRVA5b320xbNvu30tqxVPXpld73bhtOeH6uAjRyHc=";
            extra-substituters = "https://nixbld.m-labs.hk";
            };
            }

            `

              pyquest

              Still not working so posting another flake file in the hope that someone can help me figure this out. I am following the discussion here.
              https://discourse.nixos.org/t/fetch-from-github-dependencies-conky/62245/2

              `

              {
               inputs.extrapkg.url = "git+https://git.m-labs.hk/M-Labs/artiq-extrapkg.git";
               inputs.miniconf.url = "github:quartiq/miniconf";
               inputs.pypylon = {url = github.com/basler/pypylon ;flake = false; };




              outputs = { self, extrapkg, miniconf,pypylon }:

              let
                pkgs = extrapkg.pkgs;
                artiq = extrapkg.packages.x86_64-linux;
                pypylon = pkgs.python3Packages.buildPythonPackage rec {
              	pname = "pypylon";
              	format = "pyproject";
              	version = "4.1.0";
              	doCheck = false; # check requires pip
              	src =  pkgs.fetchFromGitHub {owner = "basler";
              	    	 	 repo = "pypylon";
              	    	 	 rev = "v${version}";};
              	};


              in {

                devShells.x86_64-linux.default = pkgs.mkShell {
                  name = "artiq-env";
                  packages = [
                    # ========================================
                    # EDIT BELOW
                    # ========================================
                    (pkgs.python3.withPackages(ps: [
                      # List desired Python packages here.
                      artiq.artiq
                      #ps.paramiko  # needed if and only if flashing boards remotely (artiq_flash -H)
                      artiq.flake8-artiq
                      artiq.dax
                      artiq.dax-applets

                      ps.pandas
                      ps.numpy
                      ps.scipy
                      ps.spyder
                      pypylon

                      #ps.numba
                      ps.matplotlib
                      ps.jupyterlab
                      # or if you need Qt (will recompile):
                      #(ps.matplotlib.override { enableQt = true; })
                      ps.bokeh
                      ps.cirq
                      #ps.qiskit
                    ]))

                    miniconf.packages.x86_64-linux.miniconf-mqtt-py



                    #artiq.korad_ka3005p
                    #artiq.novatech409b
                    # List desired non-Python packages here
                    artiq.openocd-bscanspi  # needed if and only if flashing boards
                    # Other potentially interesting non-Python packages from the NixOS package collection:
                    #pkgs.gtkwave
                    #pkgs.spyder

                    #pkgs.R
                    #pkgs.julia
                    # ========================================
                    # EDIT ABOVE
                    # ========================================
                  ];
                  };
                  };
                 nixConfig = {  # work around https://github.com/NixOS/nix/issues/6771
                extra-trusted-public-keys = "nixbld.m-labs.hk-1:5aSRVA5b320xbNvu30tqxVPXpld73bhtOeH6uAjRyHc=";
                extra-substituters = "https://nixbld.m-labs.hk";
                 };
                  }

              `

              This spits out:

              `
              grpartiq@hrlit3085:~/ARTIQ/Artiq_Workplace$ nix develop
              warning: found empty hash, assuming 'sha256-AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA='
              error: builder for '/nix/store/fllgkd5xbafpq1zpiq6sjybcrx7r2z1q-source.drv' failed with exit code 1;
              last 25 log lines:
              > establish a secure connection to it. To learn more about this situation and
              > how to fix it, please visit the webpage mentioned above.
              >
              > trying https://github.com/basler/pypylon/archive/v4.1.0.tar.gz
              > % Total % Received % Xferd Average Speed Time Time Time Current
              > Dload Upload Total Spent Left Speed
              > 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
              > 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
              > curl: (22) The requested URL returned error: 404
              > Warning: Problem (retrying all errors). Will retry in 1 seconds. 3 retries
              > Warning: left.
              > 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
              > 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
              > curl: (22) The requested URL returned error: 404
              > Warning: Problem (retrying all errors). Will retry in 2 seconds. 2 retries
              > Warning: left.
              > 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
              > 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
              > curl: (22) The requested URL returned error: 404
              > Warning: Problem (retrying all errors). Will retry in 4 seconds. 1 retries
              > Warning: left.
              > 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
              > 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
              > curl: (22) The requested URL returned error: 404
              > error: cannot download source from any mirror
              For full logs, run:
              nix log /nix/store/fllgkd5xbafpq1zpiq6sjybcrx7r2z1q-source.drv
              error: 1 dependencies of derivation '/nix/store/l0f6z2mrkprynjx7ffd3yljvs9pmk551-python3.12-pypylon-4.1.0.drv' failed to build
              error: 1 dependencies of derivation '/nix/store/f2a03rd612vgzvc5rbd5dfif67lszsd2-python3-3.12.9-env.drv' failed to build
              error: 1 dependencies of derivation '/nix/store/n91jwggh2wcrq6265p8qyqchc6n8np6i-artiq-env-env.drv' failed to build

              `

                pyquest

                You can remove the pypylon input and instead define the package directly like this:

                      pypylon = pkgs.python3Packages.buildPythonPackage rec {
                        pname = "pypylon";
                        version = "4.1.0";
                        src = pkgs.fetchFromGitHub {
                          owner = "basler";
                          repo = "pypylon";
                          rev = "${version}";
                          hash = "sha256-qi74kq9l8OvmPZQ202+evnTChm2hY4PJkgzJAmv+/vY=";
                        };
                        nativeBuildInputs = [
                          pkgs.swig
                        ];
                        doCheck = false;
                      };

                However, this package seems to require pylon SDK to be installed and expects it at /opt/pylon, as shown by the error:
                FileNotFoundError: [Errno 2] No such file or directory: '/opt/pylon/bin/pylon-config'

                  fsagbuya

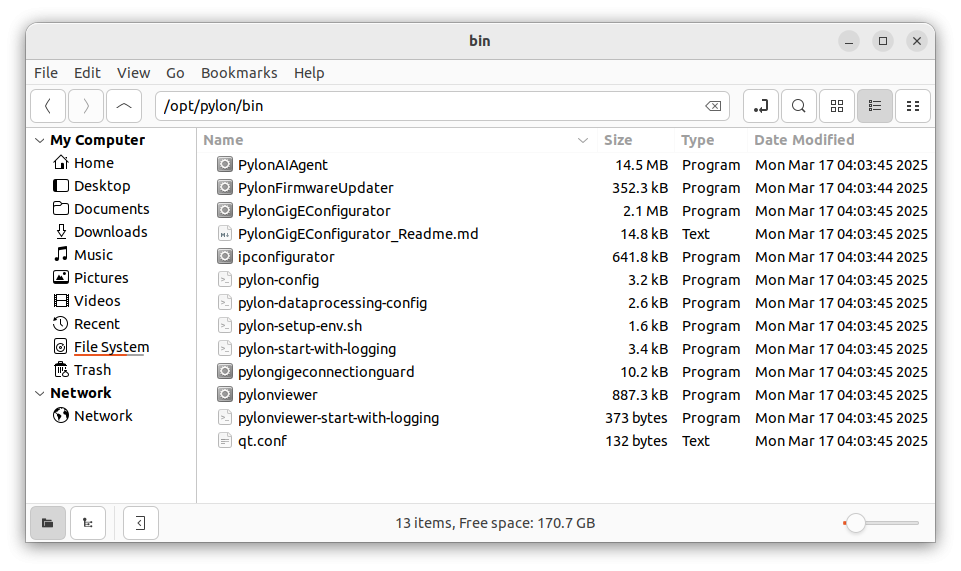

                  So that is the weird thing. I have pylon installed at /opt/pylon/bin and the directory contains a pylon-config.

                  However, I still can't get the nix package manager to handle/find the file.

                  `
                  warning: updating lock file '"/home/grpartiq/ARTIQ/Artiq_Workplace/flake.lock"':
                  • Removed input 'pypylon'
                  error: builder for '/nix/store/f2bhkdwfn4vsdh0dzpm8c4zlx7z7p1li-python3.12-pypylon-4.1.0.drv' failed with exit code 1;
                  last 25 log lines:
                  > File "/build/source/nix_run_setup", line 8, in <module>
                  > exec(compile(getattr(tokenize, 'open', open)(file).read().replace('\r\n', '\n'), file, 'exec'))
                  > File "setup.py", line 1093, in <module>
                  > bs = BuildSupport.make()
                  > ^^^^^^^^^^^^^^^^^^^
                  > File "setup.py", line 372, in make
                  > return BuildSupportLinux()
                  > ^^^^^^^^^^^^^^^^^^^
                  > File "setup.py", line 820, in init
                  > config_cflags = self.call_pylon_config("--cflags")
                  > ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
                  > File "setup.py", line 908, in call_pylon_config
                  > res = subprocess.check_output(params, universal_newlines=True)
                  > ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
                  > File "/nix/store/f2krmq3iv5nibcvn4rw7nrnrciqprdkh-python3-3.12.9/lib/python3.12/subprocess.py", line 468, in check_output
                  > return run(popenargs, stdout=PIPE, timeout=timeout, check=True,
                  > ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
                  > File "/nix/store/f2krmq3iv5nibcvn4rw7nrnrciqprdkh-python3-3.12.9/lib/python3.12/subprocess.py", line 550, in run
                  > with Popen(
                  popenargs, **kwargs) as process:
                  > ^^^^^^^^^^^^^^^^^^^^^^^^^^^
                  > File "/nix/store/f2krmq3iv5nibcvn4rw7nrnrciqprdkh-python3-3.12.9/lib/python3.12/subprocess.py", line 1028, in init
                  > self._execute_child(args, executable, preexec_fn, close_fds,
                  > File "/nix/store/f2krmq3iv5nibcvn4rw7nrnrciqprdkh-python3-3.12.9/lib/python3.12/subprocess.py", line 1963, in _execute_child
                  > raise child_exception_type(errno_num, err_msg, err_filename)
                  > FileNotFoundError: [Errno 2] No such file or directory: '/opt/pylon/bin/pylon-config'
                  For full logs, run:
                  nix log /nix/store/f2bhkdwfn4vsdh0dzpm8c4zlx7z7p1li-python3.12-pypylon-4.1.0.drv
                  error: 1 dependencies of derivation '/nix/store/9z7z9g20sfnlkw3n5520rj4qkbgg7b1d-python3-3.12.9-env.drv' failed to build
                  error: 1 dependencies of derivation '/nix/store/dcrfmm96pdhvw2x2v67cmpx47jjspp6m-artiq-env-env.drv' failed to build

                  `

                    pyquest
                    Hi, I managed to build the pypylon package with the following changes:

                    • packaged pylonSdk in nix and used it as buildInputs for pypylon
                    • updated the pypylon version due to swig issues
                    • added /opt to sandbox paths so it can access /opt/pypylon/bin
                    --- a/flake.nix
                    +++ b/flake.nix
                    @@ -7,15 +7,29 @@
                           pkgs = extrapkg.pkgs;
                           artiq = extrapkg.packages.x86_64-linux;

                    +      pylon-sdk = pkgs.stdenv.mkDerivation {
                    +        name = "pylon-sdk";
                    +        version = "8.1.0";
                    +        dontUnpack = true;
                    +        installPhase = ''
                    +          mkdir -p $out/include $out/lib
                    +          cp -r /opt/pylon/include/* $out/include/
                    +          cp -r /opt/pylon/lib/* $out/lib/
                    +        '';
                    +      };
                    +
                           pypylon = pkgs.python3Packages.buildPythonPackage rec {
                             pname = "pypylon";
                    -        version = "4.1.0";
                    +        version = "4.2.0rc2";
                             src = pkgs.fetchFromGitHub {
                               owner = "basler";
                               repo = "pypylon";
                               rev = "${version}";
                    -          hash = "sha256-qi74kq9l8OvmPZQ202+evnTChm2hY4PJkgzJAmv+/vY=";
                    +          hash = "sha256-juzQ3Mluf+YskKM+qha8TH2ALgSjVMEKVB0BdVDKVew=";
                             };
                    +        buildInputs = [
                    +          pylon-sdk
                    +        ];
                             nativeBuildInputs = [
                               pkgs.swig
                             ];
                    @@ -75,5 +89,6 @@
                       nixConfig = {  # work around https://github.com/NixOS/nix/issues/6771
                         extra-trusted-public-keys = "nixbld.m-labs.hk-1:5aSRVA5b320xbNvu30tqxVPXpld73bhtOeH6uAjRyHc=";
                         extra-substituters = "https://nixbld.m-labs.hk";
                    +    extra-sandbox-paths = "/opt";
                       };
                     }
                      9 days later

                      pyquest

                      Following up on this question. I really think documentation needs to be written for correct usage of nix environment with artiq.

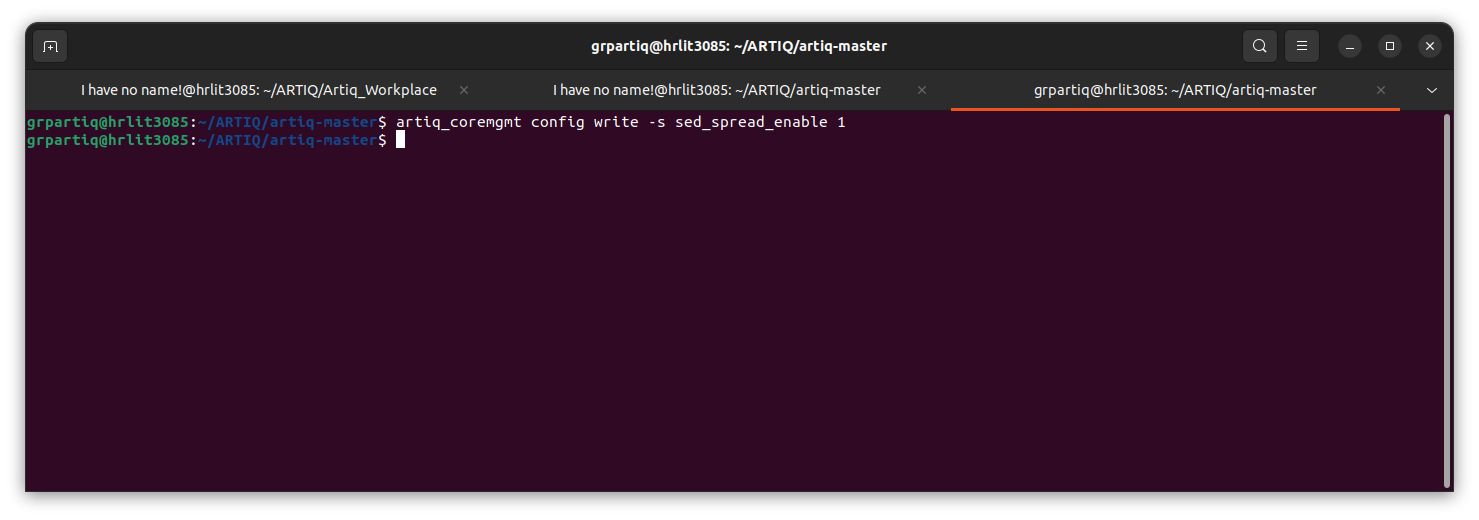

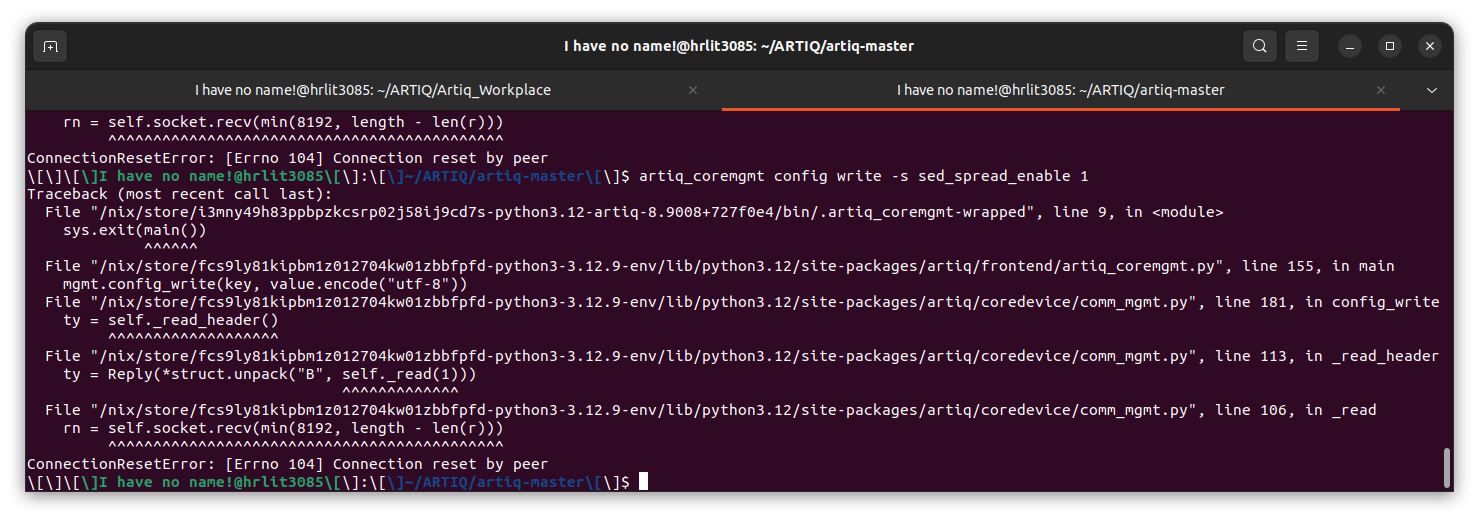

                      I am finding that I am getting RTIO overflow errors but am unable to use event spreading from within the nix environment.

                      However if I run the command from not-within the nix develop environment I can.

                      I have no way of knowing if this command is going to the microcontroller properly. I run the artiq master from a nix develop shell so is the microcontroller getting this command? All artiq master , com , dashboard were closed for running these commands.

                      You're probably mixing up ARTIQ versions, hence the error. You need to use the same major version for the firmware and the software, regardless how you install it.
                      artiq_coremgmt works independently of the other software components.

                        sb10q

                        How do I fix / install/ setup the nix manager appropriately? I have followed the instructions to the best of my know know. I am currently overwhelmed with the number of directories artiq/nix requires.

                        Currently running like this

                        `
                        ~ cd/ARTIQ/Nix_Working_Dir Nix Develop --------- startup the artiq environment/shell
                        gnome-terminal --tab --------- add new tab (2) while staying in the shell
                        ~ cd/ARTIQ/artiq-master ---------go to new tab to dir for artiq master
                        gnome-terminal --tab ---------add new tab (3) while staying in the shell
                        gnome-terminal --tab ---------add new tab (4) while staying in the shell
                        artiq_master ---------startup artiq master in tab 2
                        artiq_ctlmgr --------- startup artiq_ctlmgr in tab 3
                        artiq_dashboard ---------startup artiq_dashboard in tab 4

                        gnome-terminal --tab --------- add new tab (5) while staying in the shell
                        ~ cd/ARTIQ/stabilizer --------- go do stabilizer stuff

                        `

                        Other issues include - not sure where the dax files are being installed or why the artiq master is not seeing them? I think they should be installed per the flake.

                        Similiarly, modifying the flake to include py.pyvisa is very confusing. For example:

                        `
                        import pyvisa

                        a = pyvisa.ResourceManager()

                        ValueError Traceback (most recent call last)
                        Cell In[11], line 1
                        ----> 1 a = pyvisa.ResourceManager()

                        File /nix/store/g2nglci3s4yyxvfyw08al5ivwzdy2mb8-python3-3.12.9-env/lib/python3.12/site-packages/pyvisa/highlevel.py:2992, in ResourceManager.new(cls, visa_library)
                        2982 """Create a new resource manager tied to the specified VISA library.
                        2983
                        2984 Parameters
                        (...)
                        2989
                        2990 """
                        2991 if not isinstance(visa_library, VisaLibraryBase):
                        -> 2992 visa_library = open_visa_library(visa_library)
                        2994 if visa_library.resource_manager is not None:
                        2995 obj = visa_library.resource_manager

                        File /nix/store/g2nglci3s4yyxvfyw08al5ivwzdy2mb8-python3-3.12.9-env/lib/python3.12/site-packages/pyvisa/highlevel.py:2899, in open_visa_library(specification)
                        2897 wrapper = "ivi"
                        2898 else:
                        -> 2899 wrapper = _get_default_wrapper()
                        2901 cls = get_wrapper_class(wrapper)
                        2903 try:

                        File /nix/store/g2nglci3s4yyxvfyw08al5ivwzdy2mb8-python3-3.12.9-env/lib/python3.12/site-packages/pyvisa/highlevel.py:2858, in _get_default_wrapper()
                        2856 except ValueError:
                        2857 logger.debug("Did not find pyvisa-py package")
                        -> 2858 raise ValueError(
                        2859 "Could not locate a VISA implementation. Install either the IVI binary or pyvisa-py."
                        2860 )

                        ValueError: Could not locate a VISA implementation. Install either the IVI binary or pyvisa-py.

                        `
                        The error is not on the import it is on calling the resource manager.

                        fsagbuya

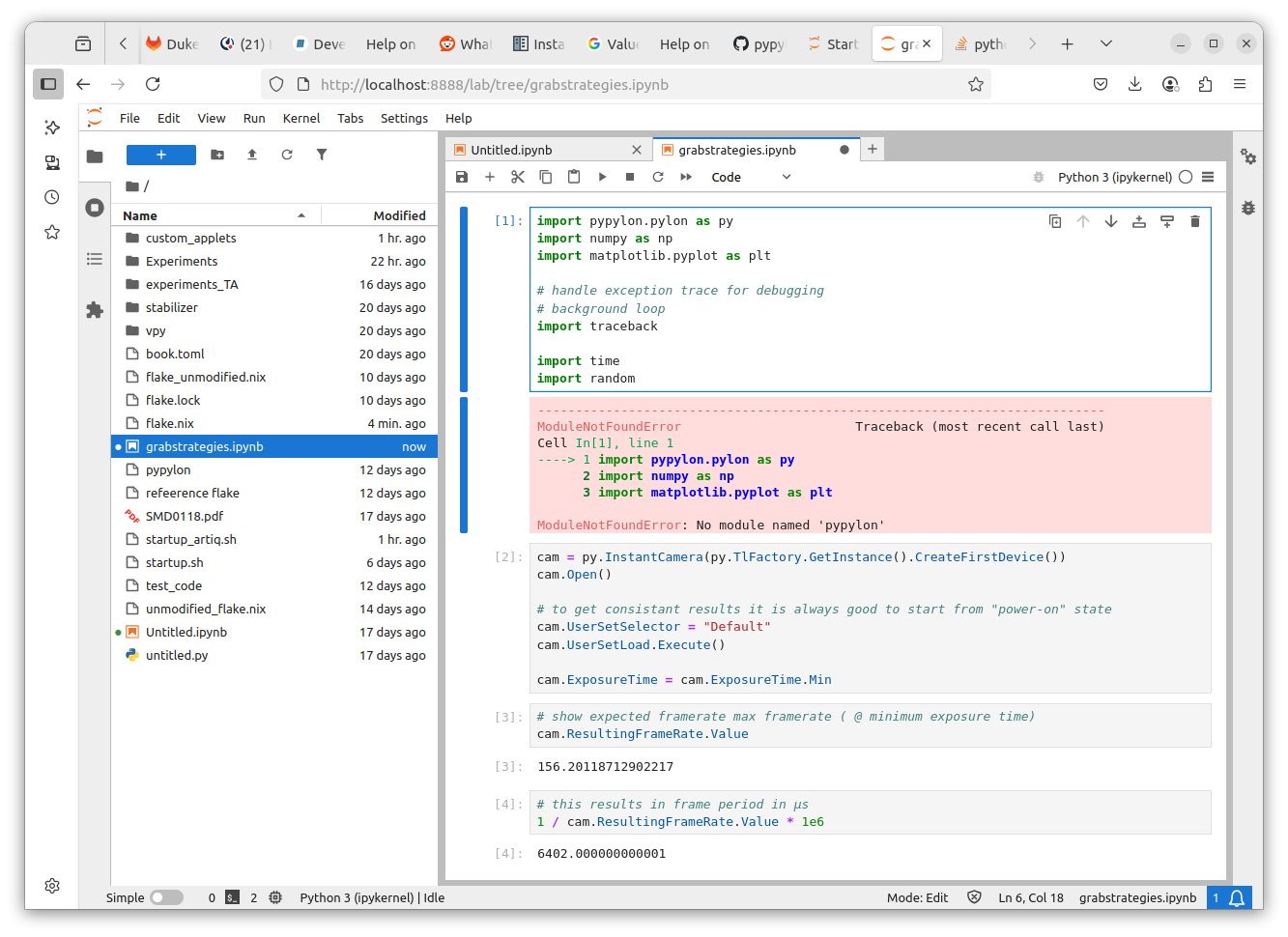

                        This compiled for me with nix develop. However it doesn't work in a way that I understand.

                          pyquest Is Jupyter running inside the same Nix environment? If not, you should run it from there by adding ps.jupyter to the flake, running nix develop, and then executing the command jupyter notebook.

                            fsagbuya

                            It was running from within the nix develop environment. The notebook was launched with jupyter lab from a terminal after nix develop with our flake and with ps.jupyterlab in the flake.
