Underflow Errors on Long (but slowish) Scans

I found the bug, figured out error handling, and will now post a solution for long-scans for others (simplified). It turns out

self.sampler0.set_gain_mu(7-i, 0) almost always throws overflow errors on long scans. Much better to pass a counter to it. It also turns out that (at least for four channels on the sampler running continuously/arbitrary number of samples that adding in a samples/5 * 30us seemed to be about right. This is tested up for 30000 samples taken at 10kHz running 500 times all within a kernel.

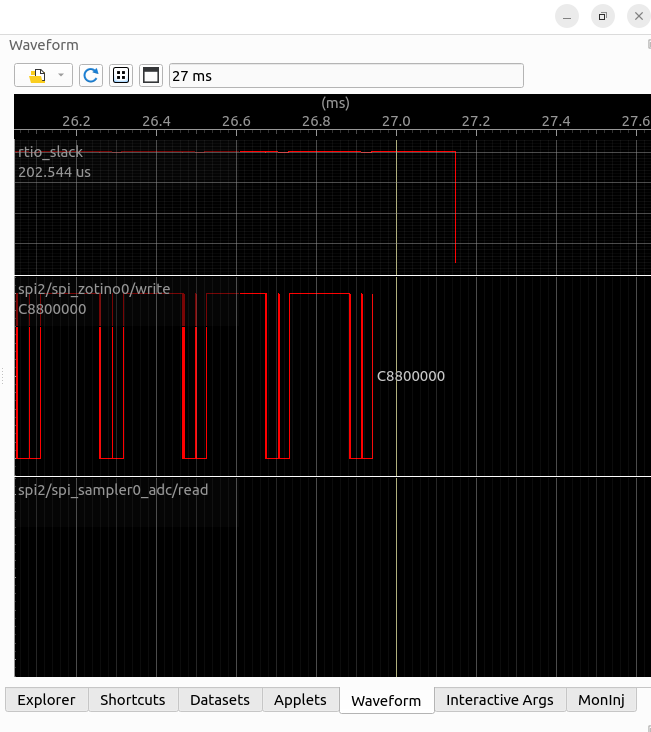

num = samples/5 +1
for n in range(samples):
delay(30usnum) #seems about right from testing to

`

from artiq.experiment import *
import numpy as np
from basic_func1 import Basic_Task
import time

 from function_library2 import Sampler_Multiple_Samples
 from function_library2 import Zotino_Voltage
 from function_library2 import DDSControl
 from function_library2 import Sample_Set_Voltage

class Controls(EnvExperiment):
"""Controls """
def build(self):
    self.setattr_device("core")
    self.delay = 100*us
    self.setattr_argument("integration", NumberValue(default=1*ms,
                                                     unit = "ms", step=.5))
    self.sampler = Sampler_Multiple_Samples(self)
    self.sampler.build()

    self.dac = Zotino_Voltage(self)
    self.dac.build()

    self.measure = Sample_Set_Voltage(self)
    self.measure.build()

    # self.setattr_argument("Laser_V_Scan",
    #     Scannable(RangeScan(10, 20, 6, randomize=False),unit="V"))


    self.setattr_argument("Laser_V_Scan",
        Scannable(default=[ RangeScan(.5, 2.5, 51, randomize=False),
                           CenterScan(1, 1.5,.005, randomize=False),
                           NoScan(15,1),
                          ],unit="V"))



def process_data(self,chs,channel_names,counter):
        'Take mean and standard deviation of data'
    #Takes the sampled data and processes it
        sz = len(chs)
        # print('sz is ' + str(sz))
        # mean_data = np.full(sz, np.nan)
        # std_data = np.full(sz, np.nan)

        l=0
        j=0
        for ch in chs:
            # print(ch)
            dat = np.array(self.measure.get_dataset(ch))
            # print(dat)
            mean= np.mean(dat)
            # mean_data[j] = mean
            sigma = np.std(dat)
            # std_data[j] = sigma
            self.mutate_dataset(channel_names[l], counter, mean)
            self.mutate_dataset(channel_names[l+1], counter, sigma)
            j=j+1
            l=l+2


@kernel
def run(self):
    # l=1
    self.core.reset()
    self.core.break_realtime()
    desired_samples = int( self.integration / self.sampler.delay)+1
    print('desired samples')
    print(desired_samples)
    self.set_dataset("Laser_V_Scan", self.Laser_V_Scan.sequence,
                broadcast=True, persist=False, archive=True)

    self.set_dataset("integration_time", self.integration, persist=True)

    timestamps_mu = 'Time (Machine Units)'
    channel_names = ["Temperature_R",'Temperature_R_Sig',
                     "Laser_Power_V", "Laser_Power_V_Sig",
                     "Ref_Spectrum_V", "Spectrum_V",
                     "Ref_Spectrum_Sig_V", "Spectrum_Sig_V"]

    channel_names_in = ["sampler0_chan5", "sampler0_chan6",
                           "sampler0_chan7", "sampler0_chan8"]

    chan_data = np.full(self.Laser_V_Scan.npoints, np.nan)
    for ch in channel_names:
        self.set_dataset(ch, chan_data, broadcast=True,persist=True)


    old_time = self.core.get_rtio_counter_mu()

    counter = 0
    for V in self.Laser_V_Scan.sequence:

        print(V)

        self.measure.take_data(samples=desired_samples
                               ,channel=0, voltage=V
                               ,counter=counter)

        self.process_data(channel_names_in,channel_names,counter)

        counter = counter + 1



    current_time = self.core.get_rtio_counter_mu()

    time_elapsed = self.core.mu_to_seconds(current_time-old_time)

    print('done')
    print('time elapsed is')
    print(time_elapsed)

`

`
"""helper functions in function_library2"""

class Zotino_Voltage(HasEnvironment):
"""Zotino: Ramp Generator"""
def build(self):

    self.setattr_device("core")
    self.setattr_device("zotino0")
    self.delay= 100*us # on the scope it looks like it takes 8us to switch

@kernel
def write_voltage(self,channel,voltage):
    # self.core.reset()

    self.core.break_realtime()
    self.zotino0.init()
    delay(self.delay)

    while True:
        try:
            self.zotino0.write_dac(channel, voltage)
            self.zotino0.load()
            delay(self.delay)
            break
        except RTIOUnderflow:
                delay(self.delay)


class Sample_Set_Voltage(HasEnvironment):
 """Sample 4 channels and set voltages"""
 def build(self):

     self.delay= 100*us
     self.setattr_device("core")
     # self.setattr_device("sampler0")
     # self.setattr_device("zotino0")

     self.dac = Zotino_Voltage(self)
     self.dac.build()


     self.adc = Sampler_Multiple_Samples(self)
     self.adc.build()
     # self.zotino0.init()
     # self.sampler0.init()


 @kernel
 def take_data(self,samples,channel,voltage,counter):
     self.core.break_realtime()

     # self.sampler0.init()
     delay(self.delay)

     #%% Take Data
     self.core.break_realtime()

     self.dac.write_voltage(channel,voltage)
     delay(self.delay)
     self.adc.take_data(samples,counter)




class Sampler_Multiple_Samples(HasEnvironment):
"""Sampler V3: all channels with timestamps"""
def build(self):

    self.delay= 100*us
    self.setattr_device("core")
    self.setattr_device("sampler0")




@kernel
def take_data(self,samples,counter):
    self.sampler0.init()

    #%% Prep Stuff
    n_channels = 4
    smp = [0.0]*n_channels
    channel_names = channel_names = ["sampler0_chan5", "sampler0_chan6",
                                     "sampler0_chan7", "sampler0_chan8"]
    timestamps_mu = 'Time (Machine Units)'


    for i in range(n_channels):
        chan_data = np.full(samples, np.nan)
        self.set_dataset(channel_names[i], chan_data, broadcast=True,
                         persist=False,unit = 'V')

        # delay(self.delay)

        if counter ==0:
                self.sampler0.set_gain_mu(7-i, 0)

    tstamp_data_mu = np.full(samples,self.core.get_rtio_counter_mu())
    self.set_dataset(timestamps_mu, tstamp_data_mu, broadcast=True,
                     persist=False)

    #%% Data Taking
    num = samples/5 +1
    for n in range(samples):
      delay(30*us*num) #seems about right from testing to
      #avoid RTIO errors on the sampler

      while True:
           try:
               current_time = self.core.get_rtio_counter_mu()
               self.sampler0.sample(smp)                                                #runs sampler and saves to list
               # current_time = self.core.get_rtio_counter_mu()

               for i in range(n_channels):
                   self.mutate_dataset(channel_names[i], n, smp[i])
               self.mutate_dataset(timestamps_mu, n, current_time)
               # delay(self.delay)
               break
           except RTIOUnderflow:
               delay(self.delay)
           except RTIOOverflow:
               delay(self.delay)

`
