Again a bug that I managed to isolate well:

I took the experiment from Bug in Urukul DRG: output amplitude is initialized to lower limit and added these lines just before the end of the experiment:

        self.urukul0_ch0.set_cfr2()
        self.urukul0_ch0.io_update.pulse_mu(8)

Now, the first run after power cycling the Kasli (SoC) has the expected output:

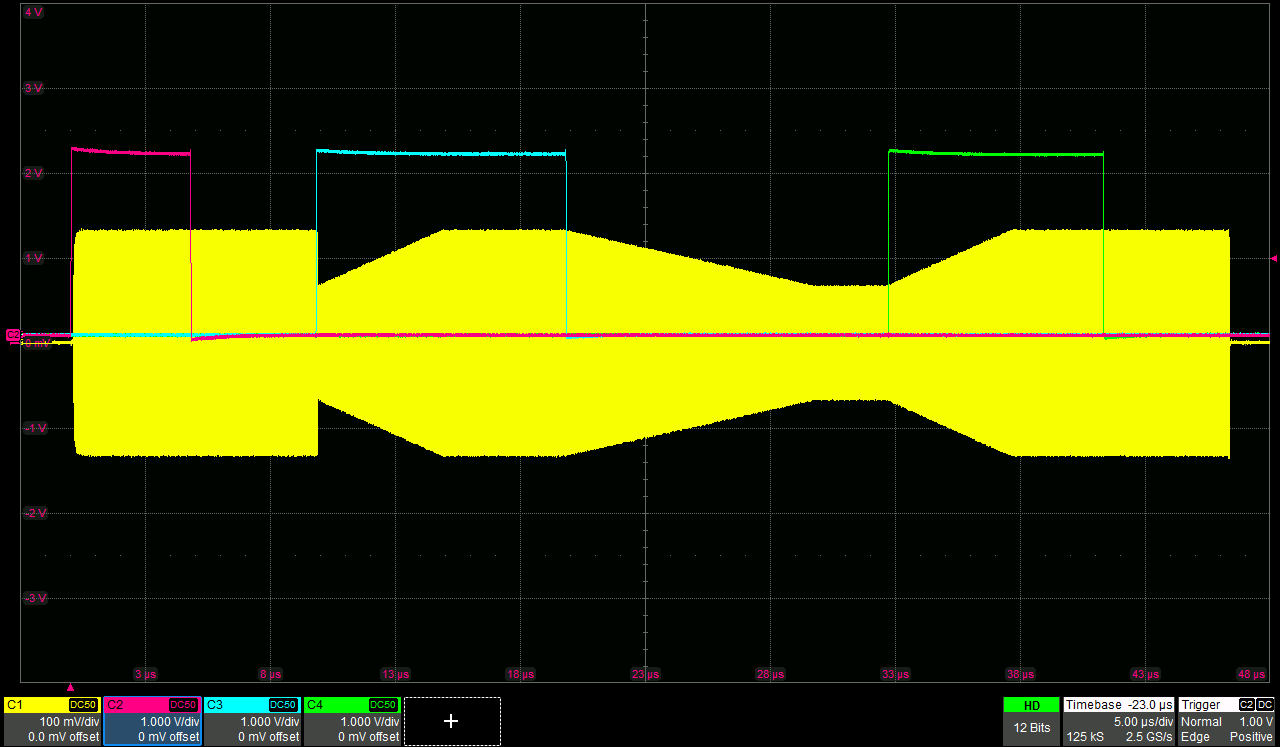

{Scope traces in first run after power cycle.}

All additional runs produce unexpected output:

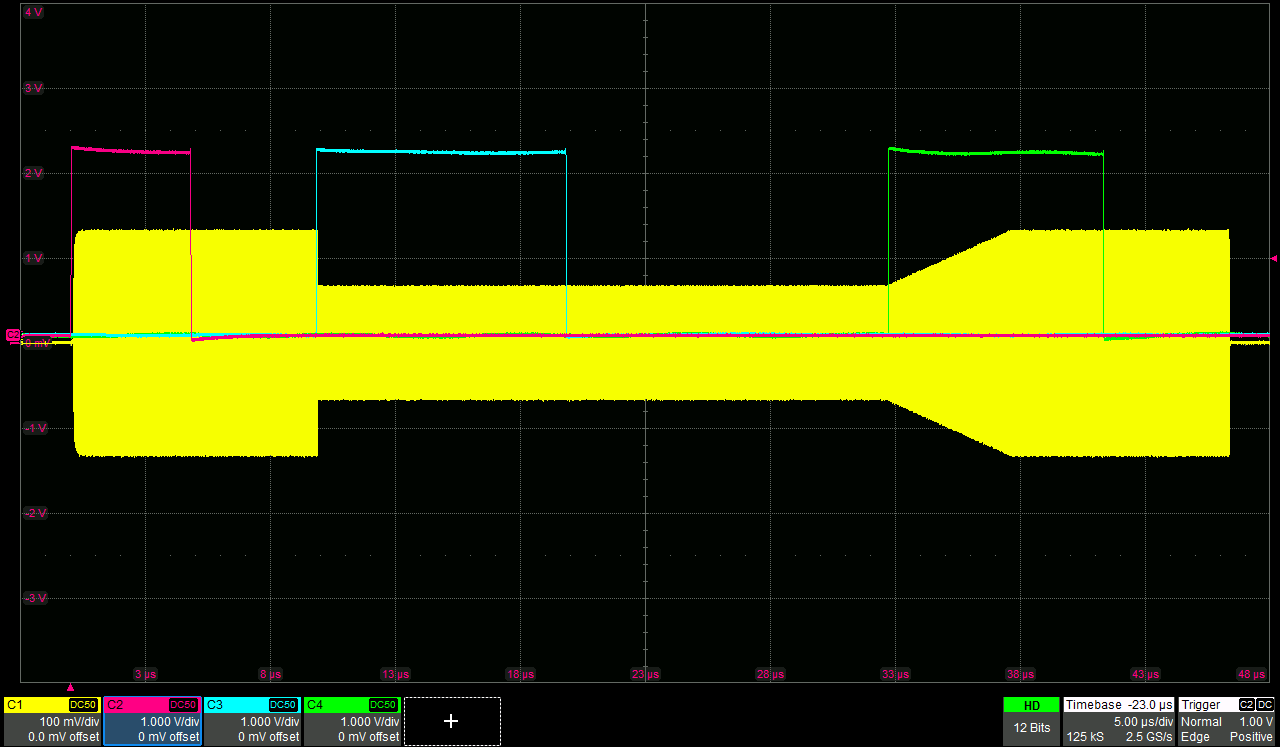

{Scope traces in every other run.}

This happens although the experiment calls self.urukul0_ch0.set_cfr2(drg_enable=1, drg_destination=2) and self.urukul0_ch0.io_update.pulse(2*us) in every run.

How can the calls set_cfr2() and io_update.pulse_mu(8) affect the output after the next calls to self.urukul0_ch0.set_cfr2(drg_enable=1, drg_destination=2) and self.urukul0_ch0.io_update.pulse(2*us)?

Note: artiq_coremgmt reboot does not have the same effect as power cycling the Kasli SoC.

The experiment (self-contained)

from artiq.language.environment import EnvExperiment
from artiq.language.core import kernel, delay, now_mu
from artiq.language.units import ns, us, ms, s, MHz, V
from artiq.language.types import TInt32, TFloat
from artiq.coredevice.i2c import i2c_write_byte
from artiq.coredevice.kasli_i2c import port_mapping
from artiq.coredevice.ad9910 import PHASE_MODE_CONTINUOUS
from artiq.coredevice.ad9910 import _AD9910_REG_RAMP_LIMIT, _AD9910_REG_RAMP_STEP, _AD9910_REG_RAMP_RATE

import numpy as np


# Maps Kasli EEM port indices that are visible on the PCB
# to actual electrical port(?) indices that need to be passed to the FPGA.
KASLI_I2C_BOARD_TO_PORT_MAPPING = [port%8 for port in port_mapping.values()]
# for `artiq.coredevice.i2c.i2c_write_byte(busno, busaddr, data, ack=True)`
# and `artiq.coredevice.i2c.i2c_read_byte(busno, busaddr)`
DIO_SMA_BUS_NUMBER = 0
DIO_SMA_BUS_ADDRESS = 0x7c # = 124 (decimal) or 01111100 (binary)


@kernel(flags={"fast-math"})
def amplitude_to_asf_32(amplitude: TFloat) -> TInt32:
    r"""Linearly maps amplitude ∈ [0.0, 1.0] to an unsigned 32-bit integer {0,1,..., 2**32-1}.
    Hacking is necessary because the ARTIQ compiler does *not* know unsigned integers."""
    if amplitude < 0.0:
        raise ValueError("Invalid AD9910 fractional amplitude!")
    elif amplitude <= 0.4999999998: # increasing the last digit from 8 to 9 fails
        # no clue why minus sign is inverted compared to `rpc_numpy_benchmark`
        return np.int32(-round(amplitude * 2 * (1 << 31))) # (1 << 32) produces gargabe
    elif amplitude <= 0.9999999998: # increasing the last digit from 8 to 9 fails
        # no clue why minus sign is inverted compared to `rpc_numpy_benchmark`
        return np.int32(round((1-amplitude) * 2 * (1 << 31))) # (1 << 32) produces gargabe
    elif amplitude <= 1.0:
        return np.int32(round((1-0.9999999998) * 2 * (1 << 31))) # (1 << 32) produces gargabe
    else:
        raise ValueError("Invalid AD9910 fractional amplitude!")
    return np.int32(0) # prevents compiler crash


class DRGAmplitudeTest(EnvExperiment):

    def build(self):
        self.setattr_device("core") # artiq.coredevice.core.Core
        device_db = self.get_device_db() # dict, DO NOT EDIT!
        self.n_kasli_socs = 1 + len(device_db["core"]["arguments"]["satellite_cpu_targets"])
        self.setattr_device("i2c_switch0") # artiq.coredevice.i2c.I2CSwitch
        self.setattr_device("ttl0") # artiq.coredevice.ttl.TTLInOut
        self.setattr_device("ttl1") # artiq.coredevice.ttl.TTLInOut
        self.setattr_device("ttl2") # artiq.coredevice.ttl.TTLInOut
        self.setattr_device("urukul0_cpld") # artiq.coredevice.urukul.CPLD
        self.setattr_device("urukul0_ch0") # artiq.coredevice.ad9910.AD9910


    @kernel
    def init(self):
        r"""
        Should be called once after every reboot or power-cycle of the Kasli (SoC).
        """
        for i in range(self.n_kasli_socs):
            while not self.core.get_rtio_destination_status(i):
                pass
        self.core.reset()
        self.core.break_realtime()
        self.i2c_switch0.set(channel = KASLI_I2C_BOARD_TO_PORT_MAPPING[0])
        delay(1*us)
        i2c_write_byte(
            busno   = DIO_SMA_BUS_NUMBER,
            busaddr = DIO_SMA_BUS_ADDRESS,
            data    = 0
        )
        delay(1*us)
        self.i2c_switch0.unset()
        self.core.break_realtime()
        for ttl in [self.ttl0, self.ttl1, self.ttl2]:
            ttl.output()
            delay(1*us)
            ttl.off()
            delay(1*us)
        self.urukul0_cpld.init()
        delay(1*us)
        self.urukul0_cpld.cfg_att_en_all(1)
        delay(1*us)
        self.urukul0_ch0.sw.off()
        delay(1*us)
        self.urukul0_ch0.init()
        delay(1*us)
        self.urukul0_ch0.set_phase_mode(PHASE_MODE_CONTINUOUS)
        delay(1*us)
        self.urukul0_ch0.set_att(0.0)
        delay(1*us)
        self.core.wait_until_mu(now_mu())


    @kernel
    def run(self):

        # =================================
        # ==== HARDWARE INITIALIZATION ====
        # =================================

        self.init()
        self.core.reset()
        self.core.break_realtime()

        # ===========================
        # ==== DDS CONFIGURATION ====
        # ===========================

        self.urukul0_ch0.set(180*MHz, 0.0, 0.1)
        delay(2*us) # Wait for SPI bus write to complete;
        # otherwise, scope shows transient effect
        # in the first microsecond of the DDS output.

        # ==========================
        # ==== EXPERIMENT START ====
        # ==========================

        self.urukul0_ch0.sw.on()

        # ============================
        # ==== RAMP CONFIGURATION ==== <-- duration marked by ttl0 high state
        # ============================

        self.ttl0.on()
        self.urukul0_ch0.write64(
            _AD9910_REG_RAMP_LIMIT,
            amplitude_to_asf_32(0.1), # upper
            amplitude_to_asf_32(0.05), # lower
        )
        self.urukul0_ch0.write32(_AD9910_REG_RAMP_RATE, (1 << 16) | (1 << 0))
        time_step = 4 / self.urukul0_ch0.sysclk # seconds
        self.urukul0_ch0.write64(
            _AD9910_REG_RAMP_STEP,
            amplitude_to_asf_32(0.05 * time_step / (10*us)), # decrement
            amplitude_to_asf_32(0.05 * time_step / (5*us)), # increment
        )
        self.urukul0_ch0.set_cfr2(drg_enable=1, drg_destination=2)

        # AD9910 datasheet page 30 says:
        # "if DRCTL = 0, the DRG output is initialized to the lower limit."
        # Our first amplitude ramp goes downwards,
        # so we do *not* want this initialization.
        # To prevent it, we set the DRCTL pin to high
        # before activating the ramp.
        self.urukul0_ch0.cfg_drctl(True)
        self.ttl0.off()

        delay(5*us) # After this delay, the state of the DRCTL pin
        # should already be high, so the DRG output should
        # *not* be initialized to the lower limit
        # when the new values of CFR2 come into effect
        # with the io_update pulse just below.

        # =========================
        # ==== RAMP ACTIVATION ==== <-- marked by ttl1 rising flank
        # =========================

        self.urukul0_ch0.io_update.pulse(2*us) # long pulse to distinuish rising and falling flank
        delay(-2*us)
        self.ttl1.on()

        # =============================
        # ==== RAMP DOWNWARD START ==== <-- marked by ttl1 falling flank
        # =============================

        delay(10*us)
        self.ttl1.off()
        delay(-1*us) # changing the state of the DRCTL pin via the SPI bus takes approx. 1 microsecond
        self.urukul0_ch0.cfg_drctl(False)

        # =======================================================
        # ==== RAMPING DOWNWARD, THEN STAYING AT LOWER LIMIT ====
        # =======================================================

        delay(13*us)

        # ===========================
        # ==== RAMP UPWARD START ==== <-- marked by ttl2 rising flank
        # ===========================

        self.ttl2.on()
        delay(-1*us) # changing the state of the DRCTL pin via the SPI bus takes approx. 1 microsecond
        self.urukul0_ch0.cfg_drctl(True)

        # =====================================================
        # ==== RAMPING UPWARD, THEN STAYING AT UPPER LIMIT ====
        # =====================================================

        delay(8*us)

        # ============================
        # ==== RAMP DE-ACTIVATION ==== <-- marked by ttl2 falling flank
        # ============================

        self.urukul0_ch0.set_cfr2()
        self.urukul0_ch0.io_update.pulse_mu(8)
        self.ttl2.off()

        # =============================
        # ==== CONSTANT DDS OUTPUT ====
        # =============================

        delay(5*us)

        # ========================
        # ==== EXPERIMENT END ====
        # ========================

        self.urukul0_ch0.sw.off()
        delay(10*us)
        self.core.wait_until_mu(now_mu())

I figured everything out:

  1. Ramps are triggered not by DRCTL's state but rather by the appropriate DRCTL state transition.
  2. Such a transition is only "valid" if the DRG enable bit in CFR2 is high in the moment of the transition, no matter if the bit has already been brought into effect by an io_update pulse or not.
  3. It seems that "valid" DRCTL transitions must be alternating. If two rising "valid" transitions are registered without a falling "valid" transition in between, then the second "valid" rising transition is ignored. (I am led to this conclusion because it makes a difference for the next ramp and/or experiment whether I reset DRCTL to low before or after setting the DRG enable bit in CFR2 to low.)

Respecting the above rules, I have gotten to this point:

self.drg_ramp("amplitude", 0.05, 2*us, (180*MHz, 0.0, 0.1))
self.drg_ramp("amplitude", 0.15, 5*us, (180*MHz, 0.0, 0.05))
self.drg_ramp("amplitude", 0.02, 5*us, (180*MHz, 0.0, 0.15))
self.drg_ramp("amplitude", 0.2, 5*us, (180*MHz, 0.0, 0.02))

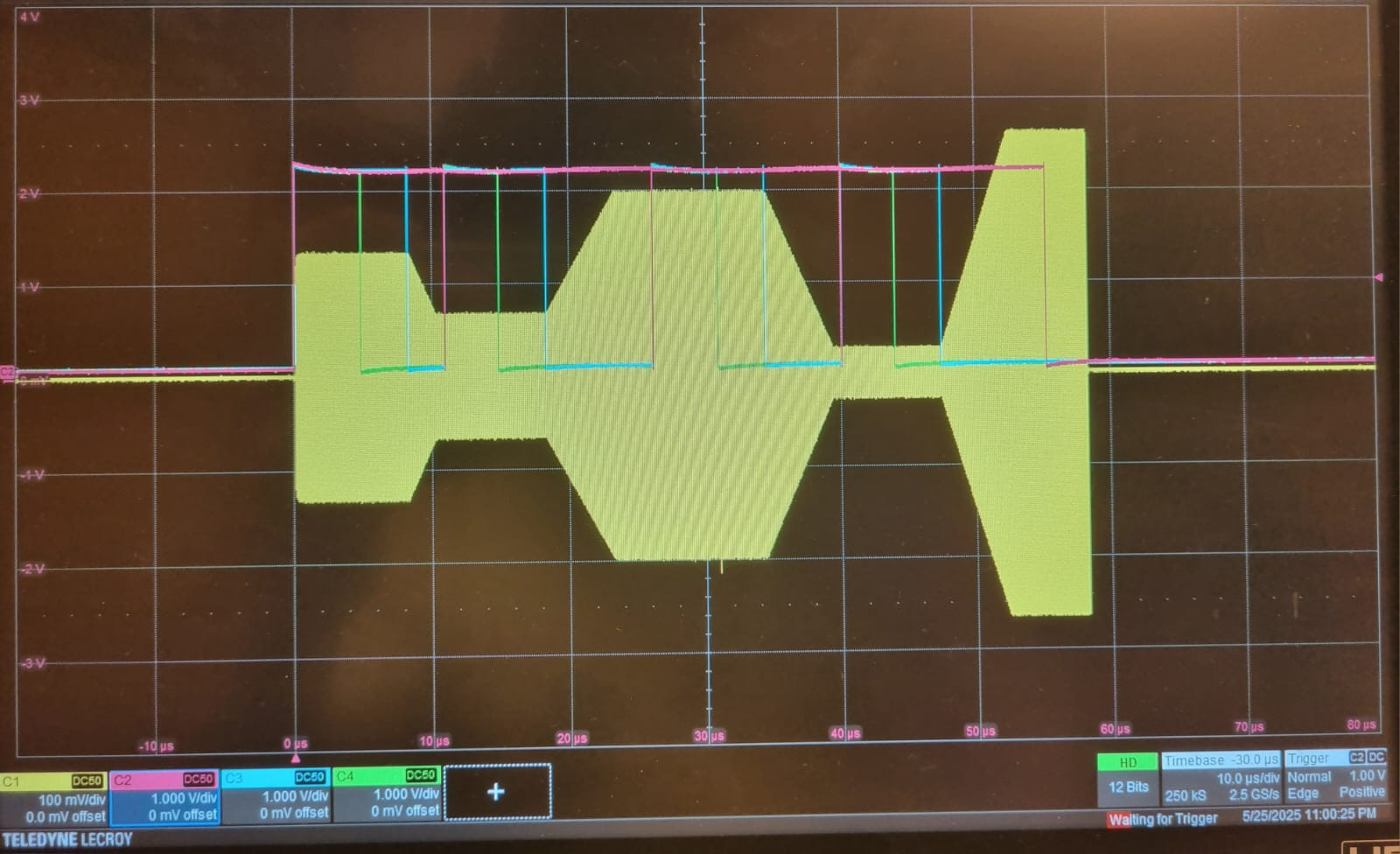

{DRG amplitude ramps}

I am preparing some clean code right now. I want to add a function to artiq's AD9910 class and then make a pull request.
